Braided Brake Lines to suit Holden VF and VE series 2 Commodore

This kit is confirmed to fit the following vehicles:

• 2010+ Holden Commodore VE Series 2 & VF (w/Brembo 6-pot Fr & 4-pot Rr)
• 2010+ Holden Commodore VE Series 2 & VF (w/Brembo 4-pot Fr & 4-pot Rr)
• 2010+ Holden Commodore VE Series 2 & VF (w/Brembo 4-pot Fr & PBR Rr)

Vehicle Specific Notes:

• 4-Line Braided brake line kit (2x Front, 2x Rear)
• Standard layout- replaces the OEM factory rubber brake hoses
• IMPORTANT NOTE: The original steel brackets for the front brake lines must be removed from the original hoses and re-used with this kit (retaining clips are supplied)

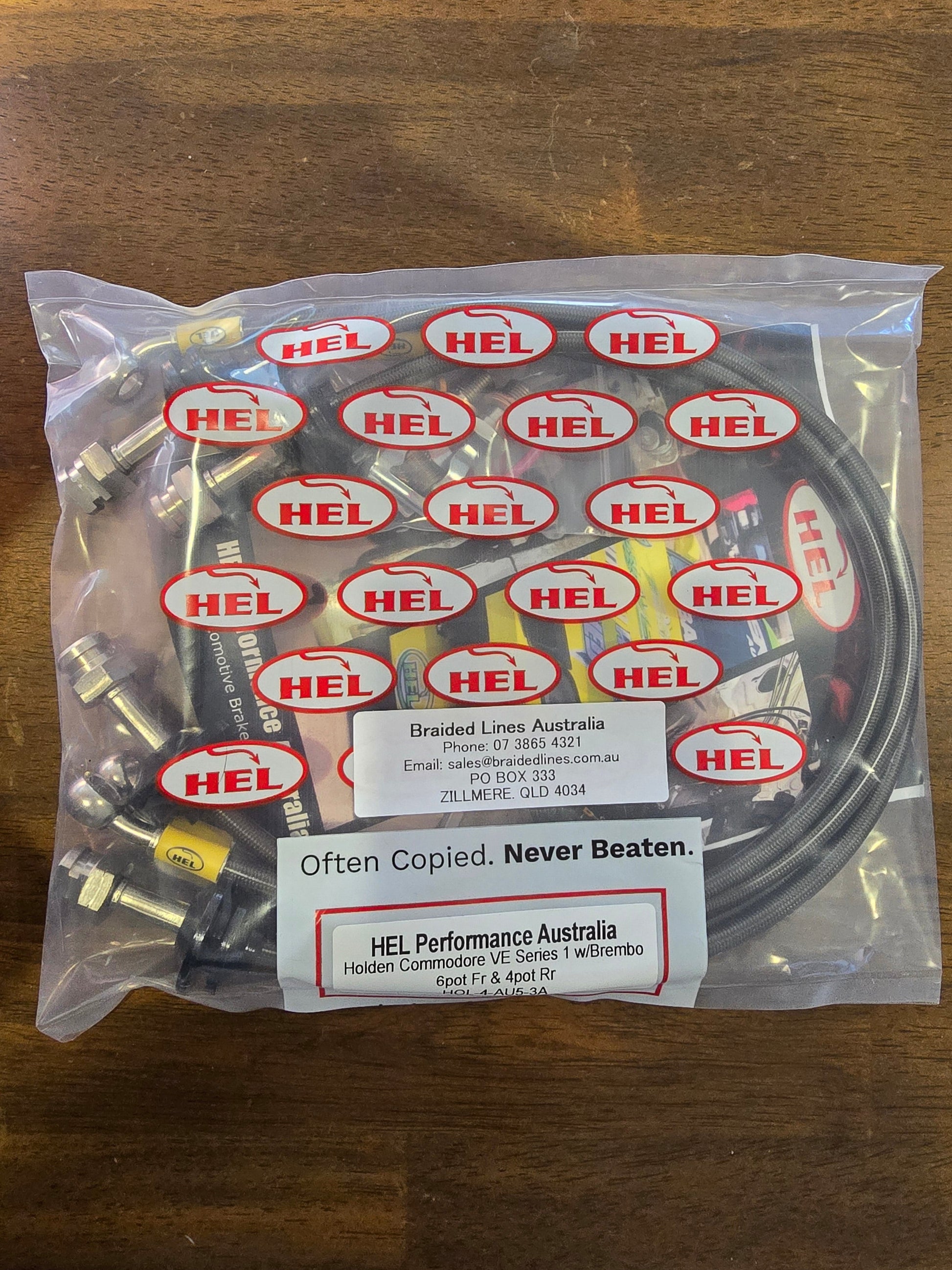

What's Included?

HEL Performance Brake Line kits include the following components:

• Stainless steel braided brake lines (see above for quantity)
• ADR Certification Number Tags (one per line)
• Natural plain stainless steel banjo bolts (if the fittings require them)
• Copper crush washers (if the fittings require them)
• Instruction Leaflet with Stickers

Specifications:

• Line inner material: PTFE
• Line outer material: Stainless steel (303/304) and protective PVC cover
• Fittings material: Stainless steel (303/304)
• Temperature range: -70°C to 260°C (-94°F to 500°F)
• Inside diameter: 3.5mm (0.138")
• Outside diameter: 7.5mm (0.295")
• Maximum working pressure: 290 Bar (4206 PSI)
• Burst pressure: 870 Bar (12618 PSI)
• Minimum bend radius: 38mm (1.496")
