Braided Brake Lines to suit Holden VT VX VY VZ Commodore with Brembo Brakes

This kit is confirmed to fit the following vehicles:

• Holden VT Commodore (with Traction Control)
• Holden VU Commodore (with Traction Control)
• Holden VX Commodore (with Traction Control)
• Holden VY Commodore (with Traction Control)
• Holden VZ Commodore (with Traction Control)

Vehicle Specific Notes:

• 6-line braided brake line kit (2x front, 2x mid, 2x rear)

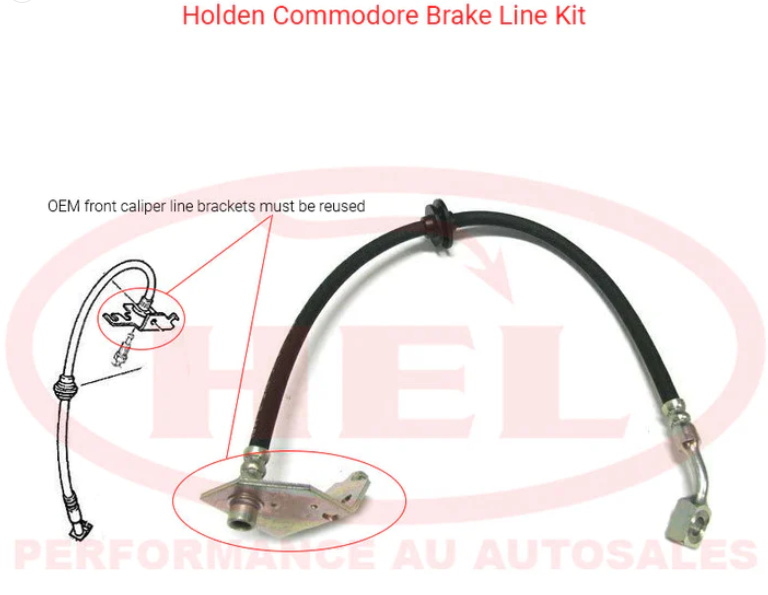

• Standard layout- replaces the OEM factory rubber brake hoses

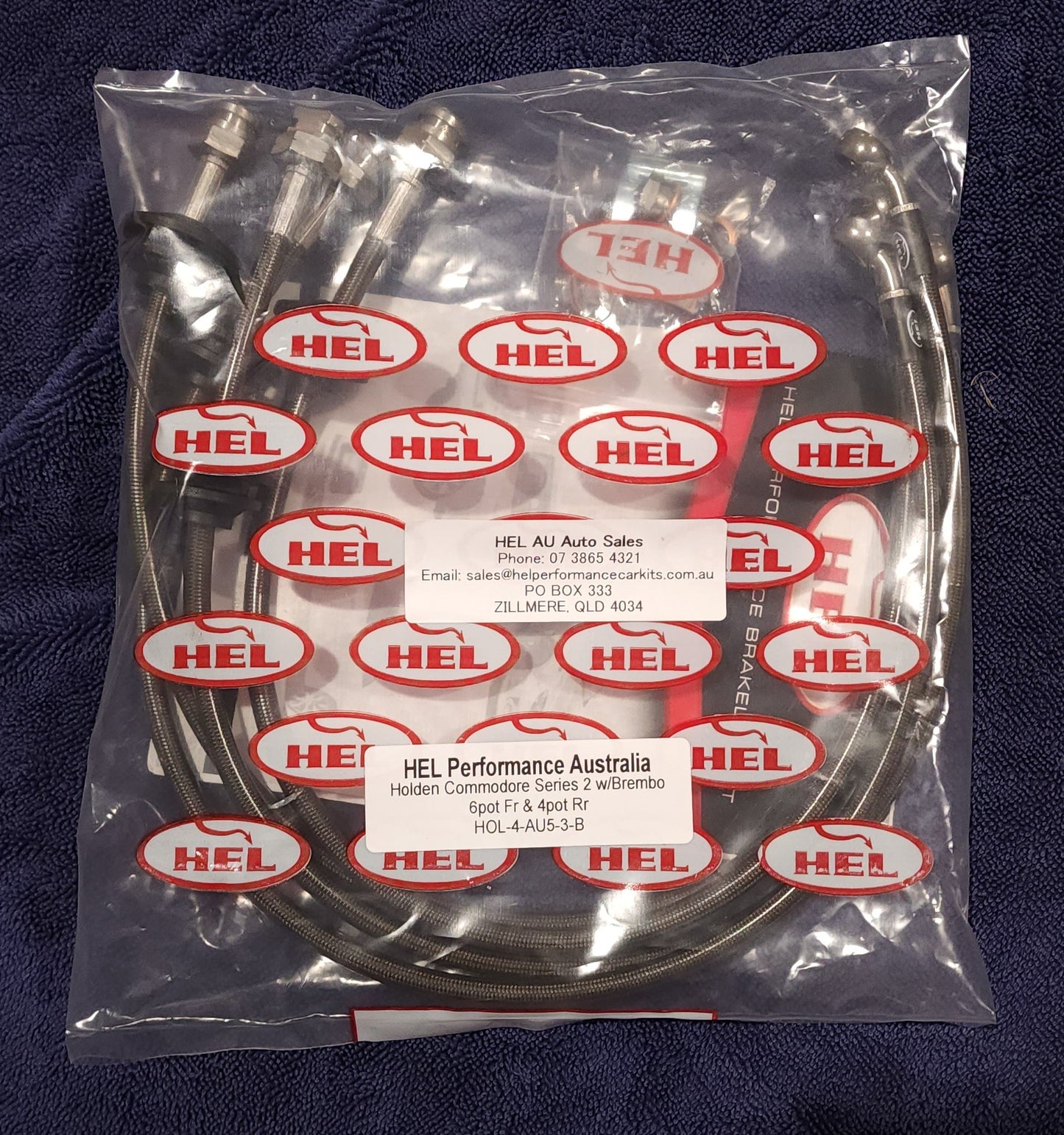

What's Included?

HEL Performance Brake Line kits include the following components:

• Stainless steel braided brake lines (see above for quantity)
• ADR Certification Number Tags (one per line)
• Natural plain stainless steel banjo bolts (if the fittings require them)
• Copper crush washers (if the fittings require them)
• Instruction Leaflet with Stickers

Specifications:

• Line inner material: PTFE
• Line outer material: Stainless steel (303/304) and protective PVC cover
• Fittings material: Stainless steel (303/304)
• Temperature range: -70°C to 260°C (-94°F to 500°F)
• Inside diameter: 3.5mm (0.138")
• Outside diameter: 7.5mm (0.295")
• Maximum working pressure: 290 Bar (4206 PSI)
• Burst pressure: 870 Bar (12618 PSI)
• Minimum bend radius: 38mm (1.496")
