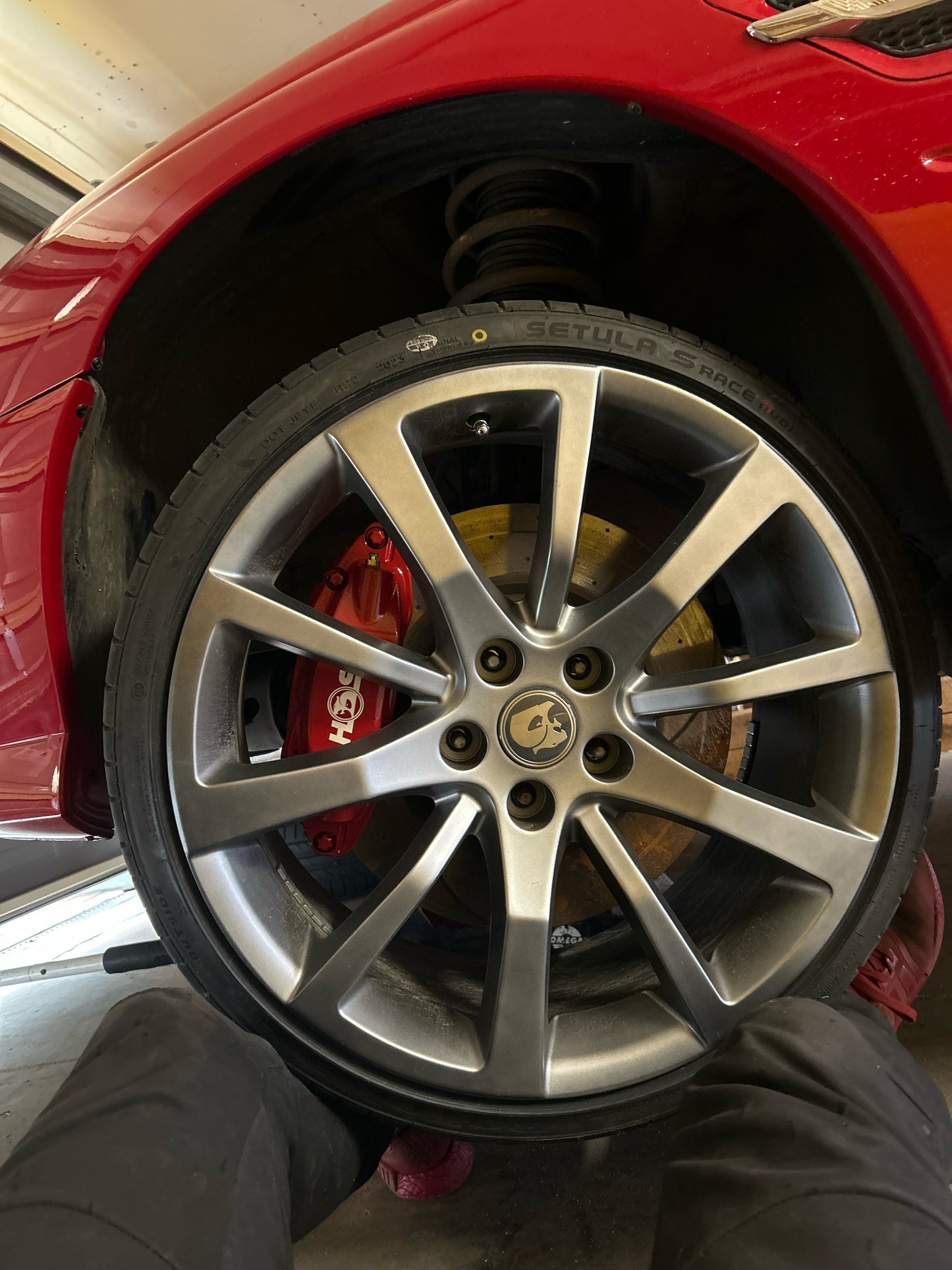

This adaptor kit converts your VT VX VU VY VZ Commodore to VE / VF rear brakes
So that means you can run VE / VF stock, brembo or AP racing brakes on your VT - VZ commodore.
Rotors Required will be the rotor the calipers are matched with, so for example;
Stock Callipers - DBA42029S / 324mm
Brembo Calipers - DBA42074S / 360mm
VE HSV Calipers - DBA42031S / 350mm
VF HSV Calipers - DBA42066S / 367mm
The Kit Includes
A Rear pair of adaptor brackets
Handbrake adaptor Brackets
Shims to go over your wheel studs
Bolts required for Installation
Your rear rotors will need to have their centres machined out from 67.4mm to 70mm to fit VT-VZ hubs as VE / VF hubs are slightly smaller. We reccomend getting this done correctly on a lathe so the original chamfer can be kept.
As an extra on the kit we can supply the brake pads and rotors with the centres machined out so everything is a straight bolt on application. Just supply your own calipers.
Requires atleast 18 Inch rims to be able to clear the brakes and depending on the rim design the offset will need to be +35 to +40 or lower. As a general rule all VE and up HSV Wheels will clear aswell as VE/VF redline wheels.
If you have PBR C5/C6 calipers you will also require some new standard VT-VZ brake lines.
The brackets are made of billet 6061-T6 alluminium and hard anodised black for longevity and the wheel stud spacers are made of stainless steel
Please Note
Your knuckles on your car are cast and may have an uneven finish and prevent the brackets from sitting correctly, if this is the case just grind the knuckle down to an even finish.
